AS2 setup In IBM Sterling Integrator

This article explains step by step procedure of AS2 Configuration in Sterling Integrator. AS2 Setup: AS2_Shan is Organiza... thumbnail 1 summary
This article explains step by step procedure of AS2 Configuration in Sterling Integrator.

AS2 Setup:


AS2_Shan is Organization & BIS is Partner for AS2 Configuration

Step 1:

Create the Self-signed Certificate, Please find the below steps

Navigate to Trading PartnerèDigital Certificate=>System=>Create=>Go

Enter Name as SSSC_AS2, Organization, Country as United States and Click Next,

Refer below Screenshot

AS2

And then give Serial Number as 0 and Enter the Duration as you like may be 1 or 2 years, Key Length should 1024 or 2048. Refer below Screenshot.


AS2

Click next and Finish.

Step 2:

Now we have create the SSSC_AS2certificate and this needs to be send to trading partner (in our case BISAS2)

Step 3:

Check out the SSSC_AS2 (Self-signed Certificate), Please find the below steps

Trading PartnerèDigital Certificate=>System=>Search by Certificate Name => Go

Click Check Out of the certificate and Save it in your local place with Default Format as Base64.

(This needs to be send to BISAS2 for their configuration)

Step 4:

Deploy the Public Key in CA Digital Certificates(Usage:Signing & Encryption),Please find the below steps

Navigate to Trading PartnerèDigital Cert=>CA=>New Certificate=>Go

Click on Browse and select the Public Key Cert and enter the name as “BIS-1” and click Finish

Same as Deploy the Public Key in Trusted Digital Certificates(Usage:Signing & Encryption), Please find the below steps

Navigate to Trading PartnerèDigital Cert=>Trusted=>New Certificate=>Go

Click on Browse and select the Public Key Cert and enter the name as “BISTrusted” and click Finish

Step 5:

AS2 Organization Setup

Create the Organization for AS2 Setup (Trading Partner Configuration for AS2), Please find the below steps

Navigate to Trading PartnerèAS2=>New AS2 partner or organization=>Go

Select Organization check box and click Next,

Name : AS2_Shan

Identifier : AS2_Shan (This needs to be configured in BIS system as well)

Profile Name : AS2_Shan

Select the Exchange Certificate as SSSC_AS2 from the drop down

Select the Signing Certificate as SSSC_AS2 from the drop down

Email Port: 25, Refer below Screenshot

AS2

Click Next and Finish.

Step 6:

AS2 Partner Setup

Navigate to Trading PartnerèAS2=> New AS2 partner =>Go

Select Partner check box and click Next then enter the below values

Name : BISAS2

Identifier : BISAS2 (This values we must have received from BIS)

Profile Name : BISAS2

End Point should be set to BIS’s URI http://ds-002618319a83:6033/as2

Response Timeout set to 30 secs

Socket Time out set to 30 secs

SSL drop down is set to Must(Its Optional)

Key Certificate Pass phrase is set to the Private Key( which we received from BIS)

Cipher Strength is set to ALL(ALL,STRONG,WEAK)

Key Certificate (System Store) is set to AS2_Shan/AS2System (AS2_Shan’s SSL Certificate for Secure )

CA Certificate is set to “BIS-1” and Click Next

Refer below Screenshot

AS2

In the Next page set the below values

Payload Type= Signed Detached Encrypted

MIME Type=Application

MIME Sub Type=XML

Compress Data=None

Exchange Certificate= BIS-1

Signing Certificate = BIS_1

Encryption Algorithm=Triple DES168 CBC with PKCS5 padding

Signing Algorithm= SHA1

MDN Receipt=Checked

Receipt Signature Type= SHA1

Receipt Timeout=300

Retry Interval (Sec)=300

Delivery Mode=Synchronous / Asynchronous HTTP

Receipt To Address = http://10.100.100.00:1234/as2 Organization URI.

and Click Next ,Refer below Screenshot

AS2


AS2

Click Next and Finish.

Step 6:

AS2 Trading Relationship

Navigate to Trading PartnerèAS2=> AS2 trading relationship=>Go, And Click Next ,Refer below Screenshot

AS2

And Click Next ,Refer below Screenshot


AS2

And Click Next ,Refer below Screenshot

AS2

Click finish ,Refer below Screenshot


AS2

Step 7:

BP & Schedules automatically its created (When we configured the Trading Relationship)

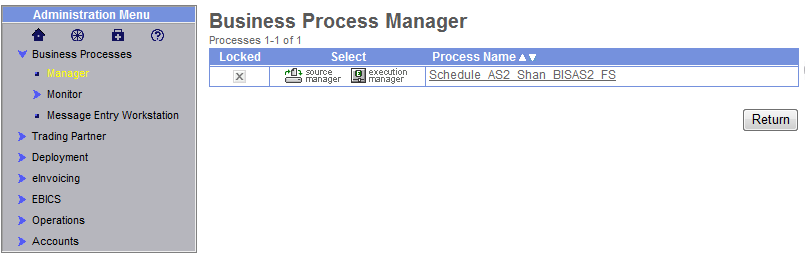

Navigate to Business Processes Manager => Process Name (Based on the Organization AS2_Shan)=>Go, And Click Next ,Refer below Screenshot


AS2

Note: Schedule_AS2_Shan_BISAS2_FS bp is based on the Organization and Partners names it’s automatically created When we configured the Trading Relationship.

Navigate to Deployment Schedule => Search by Name (Based on the Organization AS2_Shan)=>Go, And Click Next ,Refer below Screenshot


AS2

Step 8:
File Transfering between Organization to Partner .

Producer :AS2_Shan Consumer :BIS

Whenever placing the files AS2_Shan <install dir> SI\install\as2partner\AS2_Shan\BISAS2\outbound

After that automatically run the Schedule BP “Schedule_AS2_Shan_BISAS2_FS”.Then files place Consumer (BIS) Inbound directory.

Step 9:

AS2 Execution run Synchronous & Asynchronous HTTP Modes

Synchronous Mode Delivery

Ø Producer end run services

§ AS2SendSyncMDN

Ø Consumer end run services

§ AS2 Extract

§ HTTPSyncSend

§ EDIINTParse

Asynchronous HTTP Mode Delivery

Ø Producer end run services

§ AS2SendSyncMDN

§ EDIINTParse

§ HTTPSyncSend

Ø Consumer end run services

§ EDIINTParse

§ HTTPSyncSend

§ AS2 Extract

§ HTTPAsynSend

Note : Refer below Screenshot for Asynchronous HTTP Mode Delivery ,we need select all checkboxes


AS2


Step 10:

Messages may request MDN - Messages may request a Message Disposition Notification

“BISAS2_FROM_AS2_Shan_CONTRACT “ Producer sent the files Consumer at this time find the MDN

Sender : AS2_Shan & Recipient : BISAS2

“BISAS2_TO_AS2_Shan_CONTRACT”, Consumer sent the files Producer at this time find the MDN Sender : BISAS2 & Recipient : AS2_Shan
